सीएनसी राउटर के लिए नट – NUT – Collet – Spanner For CNC Router
सीएनसी राउटर के लिए नट
वह भाग जो कोलेट को अपनी जगह पर रखता है उसे कोलेट फिटिंग नट कहा जाता है। उपकरण या वर्कपीस पर मजबूत पकड़ की गारंटी के लिए, इसका उपयोग उपकरण या मशीन स्पिंडल पर कोलेट को जकड़ने के लिए किया जाता है। आमतौर पर थ्रेडेड, नट को कोलेट पर कस कर, संपीड़ित करके और वस्तु को मजबूती से पकड़कर कस दिया जाता है।
उपयोग किए जा रहे है।
विशेष कोलेट के लिए उपयुक्त कोलेट फिटिंग नट का उपयोग कोलेट सिस्टम के साथ काम करते समय किया जाना चाहिए। यह पूरी मशीनिंग प्रक्रिया के दौरान पर्याप्त सांद्रता, स्थिरता और क्लैंपिंग बल की गारंटी देता है। सुरक्षित और कुशल उपयोग की गारंटी के लिए, आपके द्वारा उपयोग किए जा रहे कोलेट और नट सिस्टम के लिए हमेशा निर्माता द्वारा दिए गए निर्देशों और विशिष्टताओं से परामर्श लें।

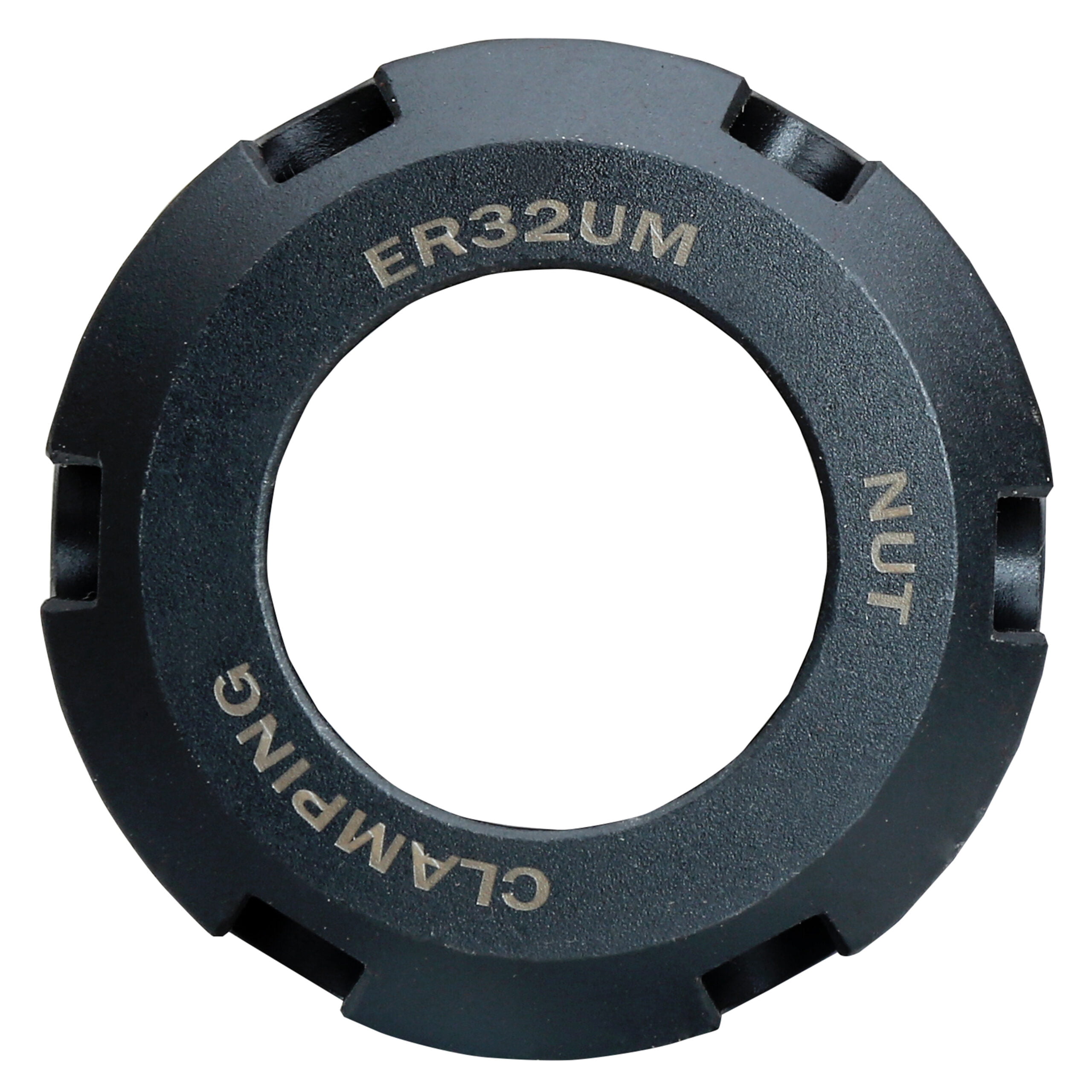

सीएनसी राउटर कोलेट के लिए नट
ईआर – 20 / ईआर – 25 / ईआर – 32

1. कोलेट के प्रकार:
सीएनसी राउटर अक्सर कोलेट का उपयोग करते हैं जो उपयोग किए जा रहे टूल के प्रकार के लिए विशिष्ट होते हैं। सामान्य कोलेट प्रकारों में ईआर कोलेट शामिल हैं, जिनका व्यापक रूप से सीएनसी अनुप्रयोगों में उपयोग किया जाता है।
2. नट और कोलेट सिस्टम:
नट वह घटक है जो उपकरण के चारों ओर कोलेट को सुरक्षित करता है। मशीनिंग के दौरान उपकरण को अपनी जगह पर मजबूती से पकड़ने के लिए इसे कोलेट पर कस दिया जाता है।
कोलेट और नट प्रणाली सीएनसी राउटर में त्वरित और आसान उपकरण परिवर्तन की अनुमति देती है।
3. सामग्री और आकार:
कोलेट सिस्टम के लिए नट आमतौर पर मजबूती और स्थायित्व प्रदान करने के लिए स्टील या अन्य मिश्र धातुओं जैसी सामग्रियों से बने होते हैं।
नट और कोलेट का आकार सीएनसी राउटर के विनिर्देशों और उपयोग किए जा रहे उपकरण के प्रकार पर निर्भर करेगा।
4. रखरखाव:
सीएनसी राउटर के समुचित कार्य के लिए नियमित रखरखाव, जिसमें घिसे-पिटे नट या कोलेट की जाँच करना और उन्हें बदलना शामिल है, आवश्यक है।
5. निर्माता विशिष्टताएँ:
यह सुनिश्चित करने के लिए कि आप अपनी विशिष्ट मशीन के लिए सही कोलेट और नट्स का उपयोग कर रहे हैं, आपके सीएनसी राउटर के लिए निर्माता के विनिर्देशों को संदर्भित करना महत्वपूर्ण है।
सीएनसी राउटर के लिए नट For Cnc Router .
Choose the Right Collet and Nut:
- Ensure the collet size matches the tool or workpiece diameter.
- Check that the collet nut fits the collet holder or chuck.
Insert the Collet into the Nut:
- Push the collet into the nut until it clicks into place. The collet should fit snugly, with its flared end matching the tapered section inside the nut.
Insert the Tool:
- Slide the shank of the tool through the collet. Ensure it’s seated properly and at the correct depth.
- Thread the Nut onto the Spindle:
- Gently screw the collet nut (with the collet and tool inside) onto the spindle of your machine. Do this by hand at first to ensure it’s threading correctly.
- Tighten the Nut:
- Use the appropriate wrench to fully tighten the collet nut. You’ll usually hold the spindle with another wrench to counteract the turning force. Tighten firmly, but don’t overtighten—collets work with friction, so just snug is fine.
Check the Tool:
- Give the tool a wiggle to make sure it’s secure. If it moves, tighten the nut a bit more.
To Remove the Tool:
- Loosen the nut with the wrench. You might need to back it off a few turns—sometimes there’s a pop as the collet releases the tool.
Safety Tip: Always make sure the machine is unplugged (or otherwise powered down) when changing tools.
- These general steps apply to most collet systems, including ER collets, R8 collets, and others. Let me know if you need specific instructions for a particular type of collet!
